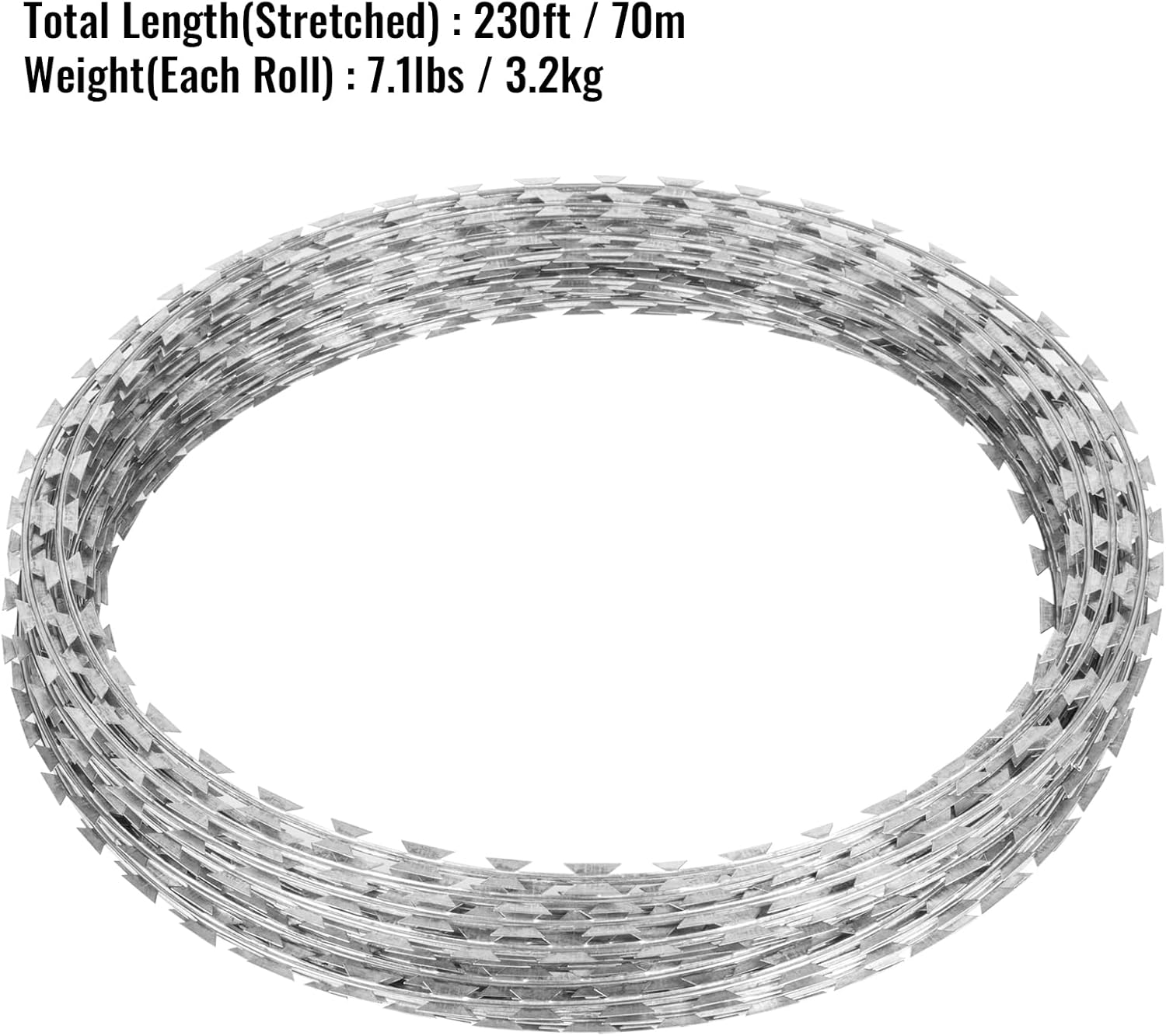

Hot Selling low price concertina BTO-22 type razor barbed wire
Hot Selling low price concertina BTO-22 type razor barbed wire
Material: Galvanized steel, High Tensile steel, Stainless steel
Application: razor wire widely used as security barrier along with walls, fences to provide a secure line.
Size : BTO-12 BTO-15 BTO-22 BTO-30 BTO-65
PRODUCT DETAILS
| Razor Wire Size Specifications | |||||
| Peference Model | Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) |
Bard Width (mm) |
Bard Spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 02±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 |
| CBT-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±1 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Razor Type | Notes |
| 450mm | 33 | 7M-8M | CBT-60, 65 | Single Coil |
| 500mm | 56 | 12M-13M | CBT-60, 65 | Single Coil |
| 700mm | 56 | 13M-14M | CBT-60, 65 | Single Coil |
| 960mm | 56 | 14M-15M | CBT-60, 65 | Single Coil |
| 450mm | 56 | 8M-9M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 500mm | 56 | 9M-10M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 600mm | 56 | 10M-11M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 600mm | 56 | 8M-10M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 700mm | 56 | 10M-12M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 800mm | 56 | 11M-13M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 900mm | 56 | 12M-14M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 960mm | 56 | 13M-15M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 980mm | 56 | 14M-16M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
